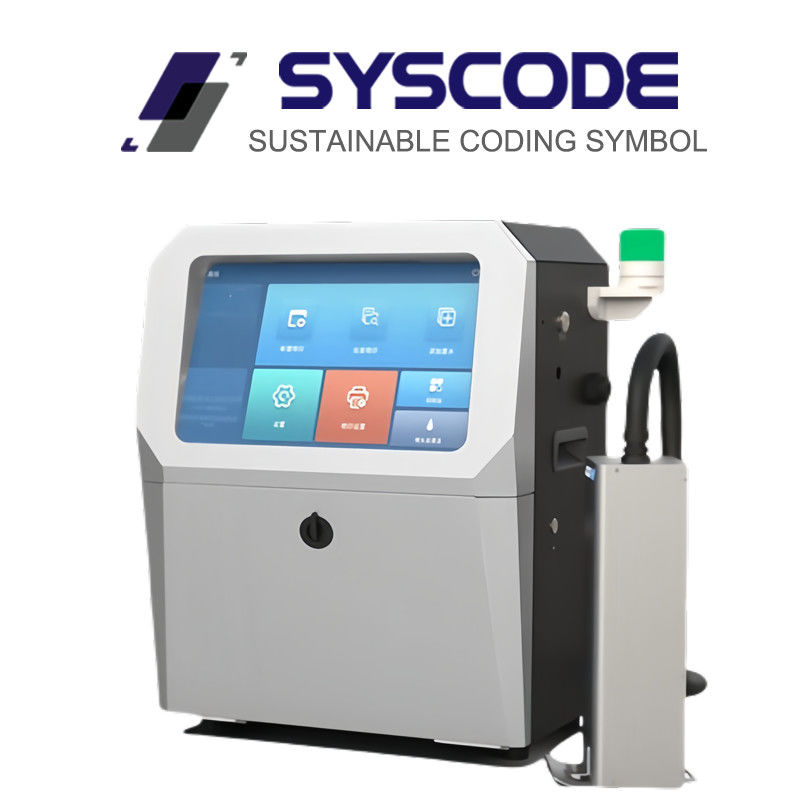

108mm Piezo High Resolution Inkjet Printer Variable Data Industrial UV Inkjet Printer
  • 108mm Piezo High Resolution Inkjet Printer Variable Data Industrial UV Inkjet Printer

108mm Piezo High Resolution Inkjet Printer Variable Data Industrial UV Inkjet Printer

Place of Origin China
Brand Name Syscode
Certification CE
Model Number S5600
Product Details
Product Name:
Piezo DOD Large Character Inkjet Printer For Packaging - Syscode Copilot S5600
Complete Machine Size:
Length 45cm Width 36cm Height 85cm
Color:
Single Color
Screen Size:
13.3-inch Touch Screen/15.6-inch Touch Screen
Resolution Of Each Nozzle Row:
300DPI
Ink Dot Type:
1 To 7 Dots
Printing Height:
108mm
Speed:
Up To 330 M/min
Temperature/humidity:
0℃-45℃<80RH,no Frost
Highlight:

108mm Piezo High Resolution Inkjet Printer

,

108mm Industrial UV Inkjet Printer

,

Variable Data Industrial UV Inkjet Printer

Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
Negotiation
Packaging Details
Carton Packing
Delivery Time
3-5 work days
Payment Terms
T/T
Product Description

NEGATIVE PRESSURE ADVANCED MODELS quality high resolution inkjet printer

Printhead: Industrial Piezo Nozzle
Printing Height:32.4mm~54mm
Resolution: 180DPI~600DPI
Printing Direction:← , ↓ , → , ↑
Max Expandable Nozzles: Custom Quantity

This device can accurately and in real-time print various types of variable data, including barcodes, QR codes, electronic supervision codes, traceability codes, anti-counterfeiting codes, UDI codes, date and time, batch group numbers, calculators, graphics, tables, and database information.

108mm Piezo High Resolution Inkjet Printer Variable Data Industrial UV Inkjet Printer 0

Performance parameters



Model

S7180/S7360

S5300

S3300

S5600

System

Syscode variable data high-speed printing system(Android/Windows optional)

Screen

13.3-inch touch screen/15.6-inch touch screen

Printhead type

Seiko 510/Seiko 1020

Toshiba   CE4

Ricoh G4

Ricoh   G5

Printing height

Single head:71.8mm

Single head:53.7mm

Single head:32.4mm

Single head:54mm

Physical resolution

180DPI/360DPI

300DPI

600DPI

Printing direction resolution

100DPI to 3000DP

300,600,900,1200DPI

100DPl to 3000DPI

Ink dot size

35PL/50PL,12PL/35PL

5PL

7PL

Ink dot type

1 dot

1 to 7 dots

1 to 3 dots

Speed

Up to 100 m/min

Up to 66 m/min

Up to 165 m/min

Up to 330 m/min

Printing directon

Upward spray,downward spay,side spray

Downward spray,side spray

Upward spray,downward spray,sde spray

Ink supply system

Negative pressure

Temperature/humidity

0℃-45℃<80RH,no frost

*Final speed depends on printing content and printing frequency.

Ink homogenization self-awakening system

• Keep precipitation inks such as white ink from precipitation, prevent ink precipitation from affecting print quality, or even block the print head, and do not need to discharge ink for cleaning in short or medium-term shutdowns.

Convenient information editing

• Using a 13.3-inch 1080P high-resolution industrial touch screen, the user can directly complete the editing of various texts, graphics, one or two-dimensional codes, and variable data, can also directly upload the printing content through the USB interface or network protocol.

One-click emptying

• When replacing different types of ink or stopping the equipment for long term, the one-click emptying function is used to empty the ink path of the equipment easily.

Automatic machine cleaning

• This function can be used to easily complete the cleaning and maintenance of the whole machine before long-term stopping of the equipment, so that the equipment is always in the best condition.

Integrated circuit control ink system

• Both the intelligent siphon and the negative pressure ink system are based on ARM integrated circuit control, with outstanding performance, stability and reliability, and powerful functions,

108mm Piezo High Resolution Inkjet Printer Variable Data Industrial UV Inkjet Printer 1

Why Choose Us?

We have our own factory covering an area of over 5,000㎡, equipped with modern production workshops, maintenance workshops, sample testing workshops, and reception centers, enabling us to provide comprehensive production and service support.

Product Applications

Our equipment is widely used across multiple industries, including but not limited to:

  • Pipes and Profiles: Efficiently marking various materials.
  • Food and Beverages: Ensuring compliance with safety standards for labeling.
  • Pharmaceuticals: Meeting strict industry regulatory requirements.
  • Cables and Electronics: Providing precise product identification.
  • Automotive: Enhancing product traceability and safety.

Advantages of Printheads - Internal Circulation Technology

Patented Internal Circulation Technology
We utilize high-flow internal circulation technology that flows directly through all nozzle channels, offering the following significant advantages:

Application Value

  • Stability: Internal circulation effectively removes bubbles and impurities from the printing chamber, ensuring the stability of continuous printing and reducing failure rates.
  • Moisture Retention: Greatly extends standby time, allowing for immediate printing upon startup, significantly lowering maintenance and cleaning frequency.
  • Extended Printhead Life: The self-repair function of internal circulation significantly reduces nozzle misfiring and clogging, greatly improving the lifespan of the printhead.
  • White Ink Adaptability: Internal circulation prevents the precipitation of large-particle pigment ink, extending the standby time from 20 to 30 minutes in standard models to half a month or even longer, ensuring sustained and efficient printing.

FAQ

High-resolution UV inkjet printer with 13.3-inch / 15.6-inch touchscreen, industrial-grade Android and Windows operating systems, offering rich features and enhanced stability. Supports hundreds of fonts, various 1D and 2D barcodes, and allows importing JPG, BMP, PNG, PDF documents, and Excel variable data for printing, providing powerful functionality.

Easy touch control, dual-head design, capable of meeting various coding requirements.
We promise to deliver only the most stable UV inkjet printers!

Q1. Can I apply for a sample order?

A: Yes, we welcome sample orders for testing and quality inspection. Mixing different models is also possible.

Q2. What is the delivery time?

A: Sample preparation takes 3-5 days, while large-scale production requires 8-10 working days.

Q3. Is there a minimum order quantity for high-resolution UV inkjet printers?

A: There is a low minimum order quantity; we can provide 1 unit for inspection.

Q4. How do you ship, and how long will it take?

A: We ship via DHL, UPS, FedEx, or TNT, which usually takes 3-5 days. Air and sea freight options are also available.

Q5. How do I place an order for a high-resolution UV inkjet printer?

A: First, let us know your requirements or application.
Second, we will quote based on your needs or our recommendations.
Third, the customer confirms the sample and pays a deposit to officially place the order.
Fourth, we arrange production.

Q6. Can I print my logo on the high-resolution inkjet products?

A: Yes, please inform us formally before production.

Q7. Do you provide a product warranty?

A: Yes, we offer a 1-year warranty for our products.

Q8. How do you handle defective products?

A: First, our products are manufactured under a strict quality control system, with a defect rate of less than 0.1%.
Second, during the warranty period, we will replace small batches of defective high-resolution inkjet printers with new units. For large batches of defective products, we will repair and return them, or discuss solutions based on the situation, including recalls.
