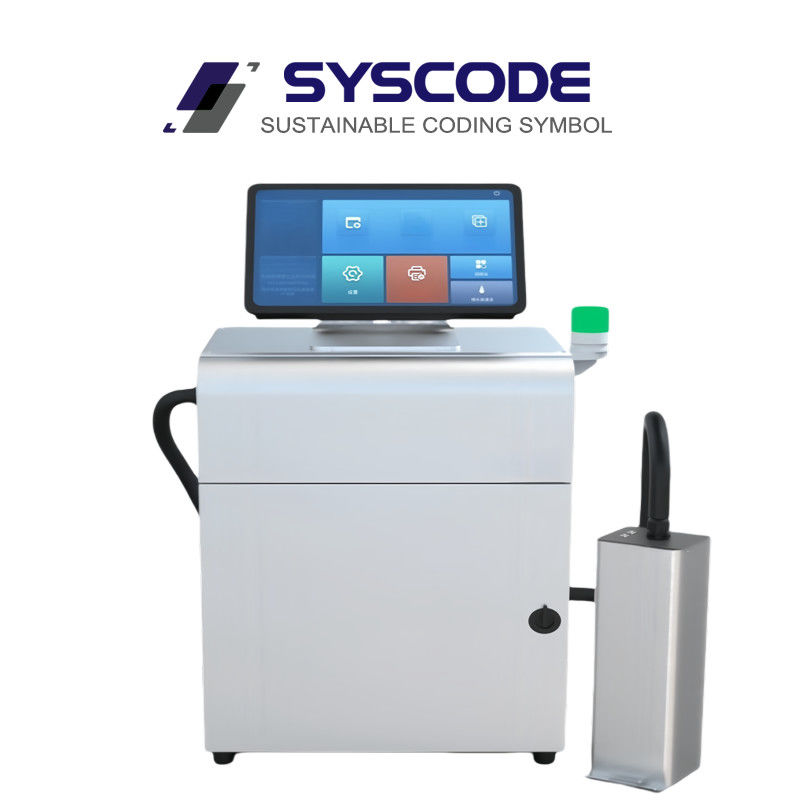

Barcode Piezo High Resolution Inkjet Printer 600DPI Continuous Inkjet Printer

Place of Origin China
Brand Name Syscode
Certification CE
Model Number S3300
Product Details
Product Name:
The S3300 High-performance Variable QR Code Industrial Digital Inkjet Printer, Independently
Physical Resolution:
600DPI
Printing Height:
53.95mm
Ink Dot Size:
3.5PL/6PL
Speed:
Up To 108 M/min
Ink Type:
UV Ink,oil-based Ink
Working Temperature:
0℃-45℃
Relative Humidity:
<80RH,no Frost
Screen Size:
13.3-inch Touch Screen/15.6-inch Touch Screen
Pressure Control:
Negative Pressure +internal Circulation
Highlight:

Barcode Piezo High Resolution Inkjet Printer

,

600DPI Piezo High Resolution Inkjet Printer

,

Barcode Continuous Inkjet Printer

Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
Negotiation
Packaging Details
Carton Packing
Delivery Time
3-5 work days
Payment Terms
T/T
Product Description

Industrial Inkjet Printing System S3300 - High-Speed Variable Data Coding for Large Products

The S3300 high-performance variable QR code industrial digital inkjet printer, independently developed by Syscode, can accurately and real-time print various variable data, including barcodes, QR codes, electronic supervision codes, traceability codes, anti-counterfeiting codes, UDI codes, date and time, batch group numbers, calculators, graphics, tables, and database information.

Main Features:

  • Wide Format Printing: Suitable for various large objects, meeting diverse industrial needs.
  • High Resolution: Ensures print quality with high clarity, making it easy to identify.
  • High Ink Volume: Suitable for fast printing, enhancing production efficiency.
  • Flexible Data Processing: Supports multiple data input formats, facilitating integration with existing systems.

Barcode Piezo High Resolution Inkjet Printer 600DPI Continuous Inkjet Printer 0

Performance parameters



Model

S7180/S7360

S5300

S3300

S5600

System

Syscode variable data high-speed printing system(Android/Windows optional)

Screen

13.3-inch touch screen/15.6-inch touch screen

Printhead type

Seiko 510/Seiko 1020

Toshiba   CE4

Ricoh G4

Ricoh   G5

Printing height

Single head:71.8mm

Single head:53.7mm

Single head:32.4mm

Single head:54mm

Physical resolution

180DPI/360DPI

300DPI

600DPI

Printing direction resolution

100DPI to 3000DP

300,600,900,1200DPI

100DPl to 3000DPI

Ink dot size

35PL/50PL,12PL/35PL

5PL

7PL

Ink dot type

1 dot

1 to 7 dots

1 to 3 dots

Speed

Up to 100 m/min

Up to 66 m/min

Up to 165 m/min

Up to 330 m/min

Printing directon

Upward spray,downward spay,side spray

Downward spray,side spray

Upward spray,downward spray,sde spray

Ink supply system

Negative pressure

Temperature/humidity

0℃-45℃<80RH,no frost

Patented Internal Circulation Technology

We utilize a high-flow patented internal circulation technology that directly flows through all nozzle channels, offering significant performance advantages compared to other printhead ink chamber circulations.

Application Value

  • Stability: The internal circulation system effectively removes bubbles and impurities from the printing chamber, ensuring stable continuous printing and minimizing downtime risks.
  • Moisture Retention: This technology significantly extends standby time, allowing for immediate spraying upon startup, thus reducing maintenance and cleaning frequency and enhancing production efficiency.
  • Extended Printhead Life: The self-repair function of the internal circulation greatly reduces the occurrence of nozzle misalignment and clogging, significantly prolonging the printhead's lifespan.
  • White Ink Adaptability: This system effectively prevents the sedimentation of large-particle pigment inks, extending standby time from the typical 20 to 30 minutes in standard models to half a month or even longer, thereby reducing user costs.

Barcode Piezo High Resolution Inkjet Printer 600DPI Continuous Inkjet Printer 1

Barcode Piezo High Resolution Inkjet Printer 600DPI Continuous Inkjet Printer 2

Key Application Benefits
Stability: The internal circulation effectively removes bubbles and impurities from the printing chamber, ensuring stable and continuous printing performance.

Moisture Retention: This technology greatly extends standby time, allowing for immediate printing upon startup and significantly reducing maintenance and cleaning frequency.

Extended Printhead Life: The self-repair function of the internal circulation minimizes oblique spraying and clogging, thereby extending the lifespan of the printhead.

White Ink Adaptability: The internal circulation prevents the sedimentation of large-particle pigment ink, extending standby time from 20-30 minutes in standard models to two weeks or longer.



Advantages of High Ink Droplet Speed and Accuracy
Ink Droplet Flight Speed: Ink droplets can reach speeds over 10 m/s, reducing the variance in landing points for different droplet types, particularly enhancing the accuracy of small ink droplets.

Jet Angle Precision: The jet angle is maintained within 1.3 mrad, ensuring that ink droplets can land accurately on a 10 cm target from 50 meters away. This precision guarantees the landing accuracy of 3-4 pl ink droplets.



Enhanced Application Value
Increased Printing Distance: Capable of printing from 1 to 25 mm, expanding the typical range of 1 to 3 mm in standard printheads, which helps avoid damage to the printhead.

Larger Printing Widths:

S3300 Model: Can print content up to 53.95 mm in height.
S5600 Model: Can print content up to 108 mm in height.
Nozzle Advantage: Ultra-High Resolution Finishing Technology
Precision Landing Points: Facilitates the printing of smaller fonts with high accuracy.



Single Column 300 dpi Nozzle Technology: TheS3300 model features a single row of 300 dpi nozzles optimized for industrial applications, while traditional 600 dpi printheads typically consist of only two rows.

Additional Application Value
Improved Print Quality: Enhances overall print quality, reducing or eliminating issues such as streaks, ghosting, or jagged edges.

Stability in Unstable Environments: Suitable for production lines or scenarios where objects may shake or be unstable, ensuring consistent printing quality.

Conclusion
Our advanced printhead technologies not only enhance performance and reliability but also cater to a wide range of industrial applications. For further inquiries and to learn more about our innovative solutions, please contact us.



FAQ

High-resolution UV inkjet printer with 13.3-inch / 15.6-inch touchscreen, industrial-grade Android and Windows operating systems, offering rich features and enhanced stability. Supports hundreds of fonts, various 1D and 2D barcodes, and allows importing JPG, BMP, PNG, PDF documents, and Excel variable data for printing, providing powerful functionality.

Easy touch control, dual-head design, capable of meeting various coding requirements.
We promise to deliver only the most stable UV inkjet printers!

Q1. Can I apply for a sample order?

A: Yes, we welcome sample orders for testing and quality inspection. Mixing different models is also possible.

Q2. What is the delivery time?

A: Sample preparation takes 3-5 days, while large-scale production requires 8-10 working days.

Q3. Is there a minimum order quantity for high-resolution UV inkjet printers?

A: There is a low minimum order quantity; we can provide 1 unit for inspection.

Q4. How do you ship, and how long will it take?

A: We ship via DHL, UPS, FedEx, or TNT, which usually takes 3-5 days. Air and sea freight options are also available.

Q5. How do I place an order for a high-resolution UV inkjet printer?

A: First, let us know your requirements or application.
Second, we will quote based on your needs or our recommendations.
Third, the customer confirms the sample and pays a deposit to officially place the order.
Fourth, we arrange production.

Q6. Can I print my logo on the high-resolution inkjet products?

A: Yes, please inform us formally before production.

Q7. Do you provide a product warranty?

A: Yes, we offer a 1-year warranty for our products.

Q8. How do you handle defective products?

A: First, our products are manufactured under a strict quality control system, with a defect rate of less than 0.1%.
Second, during the warranty period, we will replace small batches of defective high-resolution inkjet printers with new units. For large batches of defective products, we will repair and return them, or discuss solutions based on the situation, including recalls.
