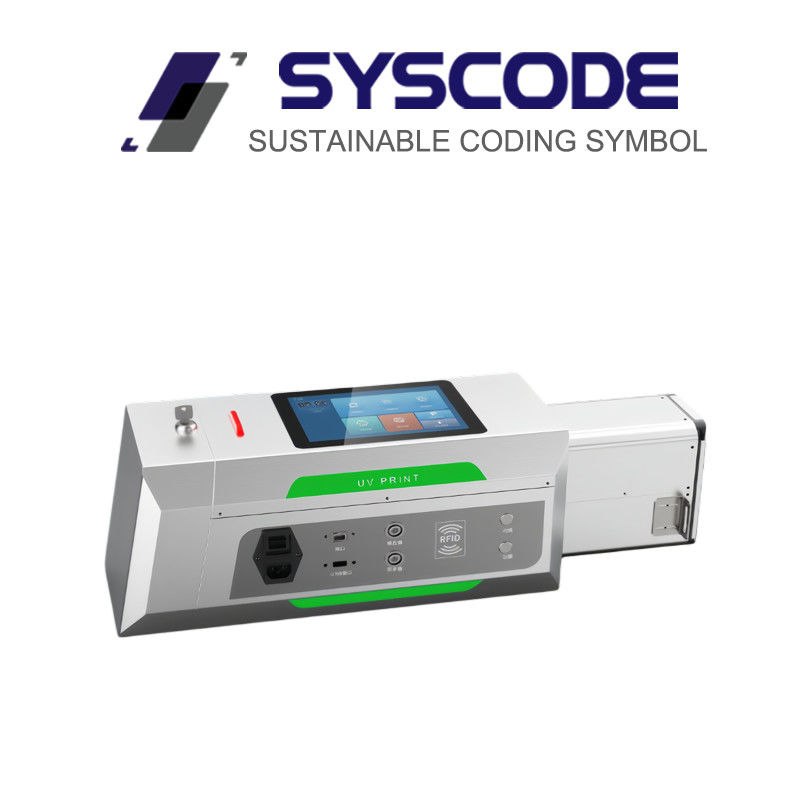

Convenient Piezo High Resolution Inkjet Printer 108m/Min Digital Inkjet Printing Machine
  • Convenient Piezo High Resolution Inkjet Printer 108m/Min Digital Inkjet Printing Machine

Convenient Piezo High Resolution Inkjet Printer 108m/Min Digital Inkjet Printing Machine

Place of Origin China
Brand Name Syscode
Certification CE
Model Number S5600
Product Details
Product Name:
Traceability Code Industrial Digital Inkjet Printing Equipment Piezo High Resolution Inkjet Printer
Ink Dot Type:
1 To 7 Dots
Physical Resolution:
600DPI
Printing Height:
53.95mm
Speed:
Up To 108 M/min
Color:
Support Dual-coor
Complete Machine Size:
Length 45cm Width 36cm Height 85cm
Ink Type:
UV Ink,oil-based Ink
Highlight:

Convenient Piezo High Resolution Inkjet Printer

,

108m/Min Piezo High Resolution Inkjet Printer

,

Convenient Digital Inkjet Printing Machine

Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
Negotiation
Packaging Details
Carton Packing
Delivery Time
3-5 work days
Payment Terms
T/T
Product Description

Traceability code industrial digital inkjet printing equipment Piezo High Resolution inkjet Printer

Product Advantages

Large Format Printing
Our product offers a variety of printing widths, including options of 32.4mm, 54mm, 71.8mm, and 108mm per nozzle. The printing speed remains unaffected by adjustments in the number of lines or height, and our multi-head seamless stitching technology enables even larger printing formats.

High-Speed Printing
Utilizing advanced piezoelectric nozzle technology, our system achieves a maximum firing frequency of up to 100 kHz. This allows for single-head printing of 600 x 600 DPI images at speeds exceeding 200 meters per minute.

High-Definition Printing

Compared to traditional marking devices, the piezoelectric inkjet printer offers a maximum physical resolution of up to 600 DPI, with additional options available at 180, 300, and 360 DPI to meet diverse printing needs.

Reduced Nozzle Clogging

Whether using oil-based inks for permeable substrates or UV curing inks for non-permeable materials, our printers are solvent-free, which minimizes the risk of nozzle clogging even during extended periods of inactivity.

Eco-Friendly Technology

The oil-based and UV curing inks compatible with our piezoelectric inkjet printers are free from VOC emissions, making them a sustainable choice for environmentally-conscious operations.

Convenient Piezo High Resolution Inkjet Printer 108m/Min Digital Inkjet Printing Machine 0

Performance parameters



Model

S7180/S7360

S5300

S3300

S5600

System

Syscode variable data high-speed printing system(Android/Windows optional)

Screen

13.3-inch touch screen/15.6-inch touch screen

Printhead type

Seiko 510/Seiko 1020

Toshiba   CE4

Ricoh G4

Ricoh   G5

Printing height

Single head:71.8mm

Single head:53.7mm

Single head:32.4mm

Single head:54mm

Physical resolution

180DPI/360DPI

300DPI

600DPI

Printing direction resolution

100DPI to 3000DP

300,600,900,1200DPI

100DPl to 3000DPI

Ink dot size

35PL/50PL,12PL/35PL

5PL

7PL

Ink dot type

1 dot

1 to 7 dots

1 to 3 dots

Speed

Up to 100 m/min

Up to 66 m/min

Up to 165 m/min

Up to 330 m/min

Printing directon

Upward spray,downward spay,side spray

Downward spray,side spray

Upward spray,downward spray,sde spray

Ink supply system

Negative pressure

Temperature/humidity

0℃-45℃<80RH,no frost

Convenient Piezo High Resolution Inkjet Printer 108m/Min Digital Inkjet Printing Machine 1

 INKJET PRINTER FEATURES:

Simple operation

• With the friendly user interface, you can easily operate the equipment by instructions.

Ink cost management

• The software has advanced ink cost management functions, which can accurately calculate the ink cost of printing.

One-click emptying

• When replacing different types of ink or stopping the equipment for long term, the one-click emptying function is used to empty the ink path of the equipment easily.

Automatic machine cleaning

• This function can be used to easily complete the cleaning and maintenance of the whole machine before long-term stopping of the equipment, so that the equipment is always in the best condition.

Database printing

• The standard EasyPrint printing software already includes the database printing function, which can be compatible with TXT, EXCEL, CSV and other data packages.

Convenient information editing

• Using a 13.3-inch 1080P high-resolution industrial touch screen, the user can directly complete the editing of various texts, graphics, one or two-dimensional codes, and variable data, can also directly upload the printing content through the USB interface or network protocol.

No limited installation

• Durable stainless steel design can be installed on almost any production platform.



FAQ

High-resolution UV inkjet printer with 13.3-inch / 15.6-inch touchscreen, industrial-grade Android and Windows operating systems, offering rich features and enhanced stability. Supports hundreds of fonts, various 1D and 2D barcodes, and allows importing JPG, BMP, PNG, PDF documents, and Excel variable data for printing, providing powerful functionality.

Easy touch control, dual-head design, capable of meeting various coding requirements.
We promise to deliver only the most stable UV inkjet printers!

Q1. Can I apply for a sample order?

A: Yes, we welcome sample orders for testing and quality inspection. Mixing different models is also possible.

Q2. What is the delivery time?

A: Sample preparation takes 3-5 days, while large-scale production requires 8-10 working days.

Q3. Is there a minimum order quantity for high-resolution UV inkjet printers?

A: There is a low minimum order quantity; we can provide 1 unit for inspection.

Q4. How do you ship, and how long will it take?

A: We ship via DHL, UPS, FedEx, or TNT, which usually takes 3-5 days. Air and sea freight options are also available.

Q5. How do I place an order for a high-resolution UV inkjet printer?

A: First, let us know your requirements or application.
Second, we will quote based on your needs or our recommendations.
Third, the customer confirms the sample and pays a deposit to officially place the order.
Fourth, we arrange production.

Q6. Can I print my logo on the high-resolution inkjet products?

A: Yes, please inform us formally before production.

Q7. Do you provide a product warranty?

A: Yes, we offer a 1-year warranty for our products.

Q8. How do you handle defective products?

A: First, our products are manufactured under a strict quality control system, with a defect rate of less than 0.1%.
Second, during the warranty period, we will replace small batches of defective high-resolution inkjet printers with new units. For large batches of defective products, we will repair and return them, or discuss solutions based on the situation, including recalls.
