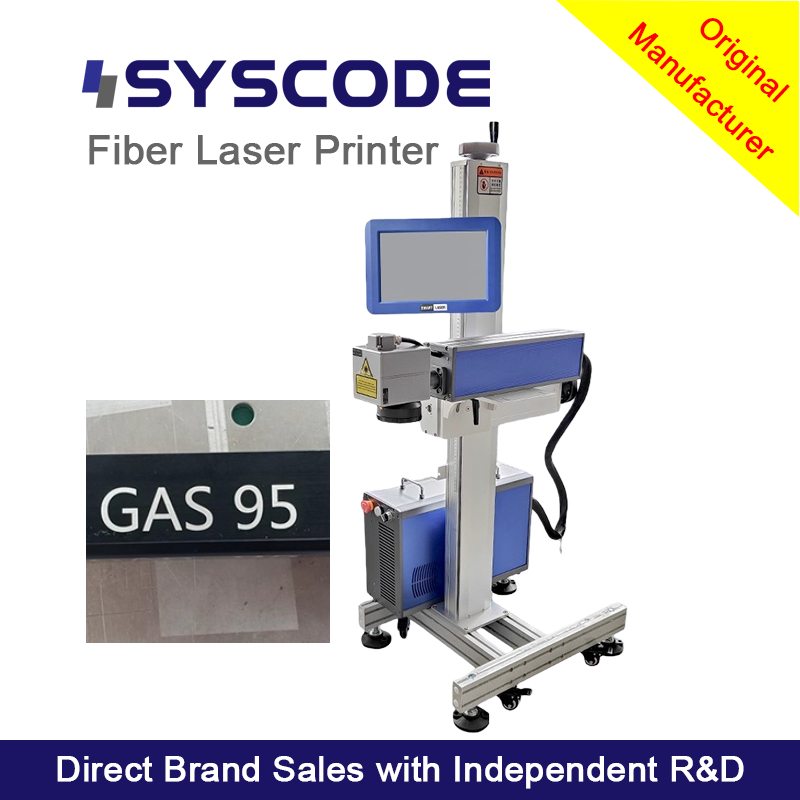

50W High-Power Fiber Laser Marking Machine: Industrial-Grade Performance for Demanding Applications
Product Overview
Our 50W High-Power Fiber Laser Marking Machine represents the pinnacle of industrial marking technology, delivering unmatched speed, depth, and clarity. Engineered with a robust 1064nm wavelength fiber laser source and an all-aluminum construction, this machine is built for continuous operation in the most demanding manufacturing environments. It achieves permanent, high-contrast marks on a vast array of metals and hard plastics, making it an indispensable tool for heavy-duty coding, deep engraving, and high-speed production lines.
Key Features & Advantages
High-Power Laser Source: The 50W fiber laser provides exceptional energy, enabling deep engraving on metals and fast, clean marking on hardened plastics. This power ensures marks remain legible even after post-processing or harsh environmental exposure.
Superior Speed and Precision: Capable of marking at speeds up to 12,000 mm/s with a repeatability of 0.01mm, this unit drastically reduces cycle times while maintaining micron-level accuracy for complex graphics and fine text.
Robust Industrial Design: The IP54-rated, full-aluminum body offers superior heat dissipation and protection against dust and coolant mist, guaranteeing long-term reliability and stability with minimal maintenance.
User-Centric Operation: The intuitive 10-inch touchscreen interface allows for quick job setup and on-the-fly editing of serial numbers, barcodes, and dates, minimizing operator training time and maximizing efficiency.
Exceptional Material Versatility: Excellently marks all common metals (stainless steel, aluminum, copper, hardened alloys) and tough plastics (PVC, PC, PA, PPO), providing a single solution for diverse industrial sectors.
Primary Applications
Automotive & Aerospace: Deeply engraving VIN numbers, component IDs, and data matrix codes on engine parts, chassis, and flight-critical components.
Tooling & Mold Industry: Creating durable, wear-resistant markings on cutting tools, jigs, fixtures, and molds.
Heavy Machinery: Permanently marking model numbers, serial codes, and safety information on machinery frames and parts.
Electronic Components: Marking ceramic PCBs, metal housings, and hardened plastic connectors with precision and speed.
Medical & Surgical Tools: Providing clear, sterile-compliant UDI codes and identification on surgical instruments.
Technical Specifications Table
| Parameter |
Specification |
| Laser Type |
Fiber Laser |
| Laser Power |
50W |
| Laser Wavelength |
1064nm |
| Marking Speed |
110x110mm (Larger options available) |
| Min. Line Width |
0.01 mm |
| Repeat Accuracy |
0.01 mm |
| Cooling System |
Air Cooling |
| Control Panel |
10-inch Touchscreen |
| Machine Structure |
All-Aluminum |
| Power Supply |
AC 220V |
| Machine Weight |
64 kg |
| Machine Dimensions |
858mm x 510mm x 1460mm |
Frequently Asked Questions (FAQ)
Q1: What is the primary advantage of choosing a 50W model over a 20W or 30W laser?
A1: The 50W laser offers significantly higher energy density, which translates to faster marking speeds, the ability to create deeper engravings, and reliable marking on harder or coated materials that lower-power lasers might struggle with.
Q2: Is this machine suitable for deep engraving (e.g., >0.2mm) into steel?
A2: Yes. The 50W power is specifically suited for deep engraving applications. By adjusting parameters like speed, frequency, and number of passes, it can achieve substantial engraving depths in various metals.
Q3: Can the marking field be larger than the standard 110x110mm?
A3: Absolutely. While 110x110mm is the standard configuration, the system can be configured with different F-theta lenses to offer larger marking fields (e.g., 200x200mm, 300x300mm) to suit specific application needs.
Q4: What kind of maintenance does this laser system require?
A4: Maintenance is minimal. It primarily involves periodically cleaning the protective lens on the laser head and ensuring the cooling fans and vents are free from dust. The solid-state fiber laser source has a long lifespan with no consumables like gases or lamps to replace.
