355nm 10W UV Laser Marking Machine Water Cooling Barcode Laser Engraving Machine
  • 355nm 10W UV Laser Marking Machine Water Cooling Barcode Laser Engraving Machine

355nm 10W UV Laser Marking Machine Water Cooling Barcode Laser Engraving Machine

Place of Origin China
Brand Name Syscode
Model Number U115
Product Details
Name:
U110 UV Laser
Applications:
HDPE, Such As Food, Pipes, Chemical Products Etc.
Output:
15W
Laser Type:
UV Laser
Cooling:
Water Cooling
Dimension:
110 Mm × 110 Mm; Maximum Marking Range: 650 Mm × 650 Mm
Guide Laser:
Infrared Beam Positioning
Wavelength:
355nm
Protection Level:
≥ IP54
Highlight:
10W UV Laser Marking Machine, Water Cooling UV Laser Marking Machine, 355nm Laser Marking Machine For Glass
Highlight:

355nm 10W UV Laser Marking Machine

,

Glass 10W UV Laser Marking Machine

,

Water Cooling Barcode Laser Engraving Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
2299$~16999$
Packaging Details
Carton Box
Delivery Time
5 -7work days
Payment Terms
T/T
Product Description

U100Series  UV Laser Marking System - Customizable, Fast, and Compatible with Multiple Software



                                                                     U110 UV Laser

355nm 10W UV Laser Marking Machine Water Cooling Barcode Laser Engraving Machine 0



355nm 10W UV Laser Marking Machine Water Cooling Barcode Laser Engraving Machine 1

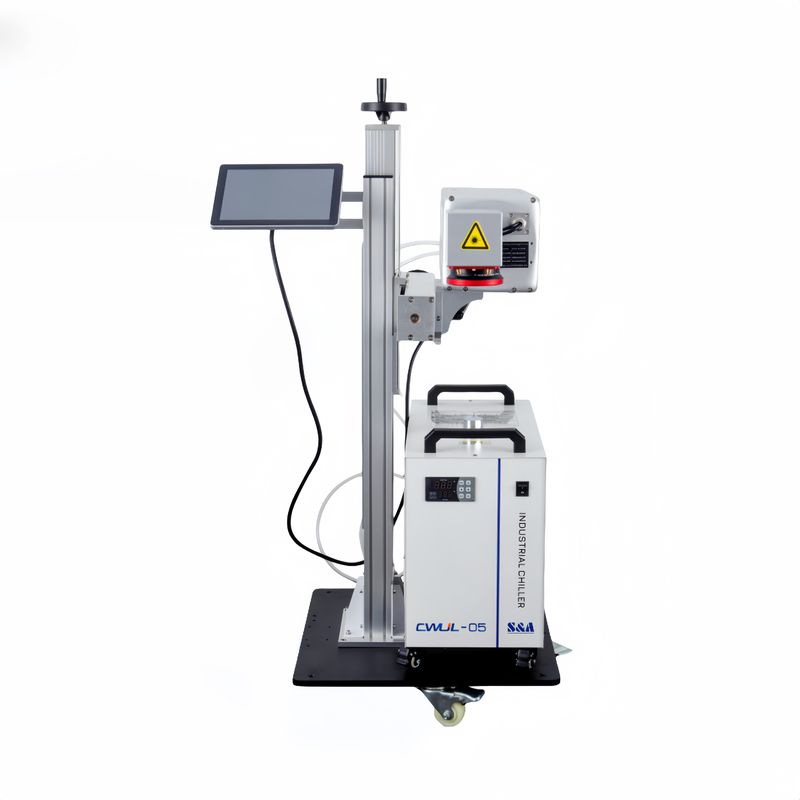

U100 Series UV Laser Marking Machine

Our U100 Series UV Laser Marking Machine utilizes a customized Shenzhen JPT laser, combined with advanced resonator cavity design and laser control technology. This design achieves excellent beam quality and narrower laser pulse width under high power operation. It significantly reduces thermal impact, ensuring fine marking effects on special materials, showcasing advantages that other laser devices cannot match.

Key Features:

  • High Performance: Equipped with a high-performance galvanometer scanning system for fast speed and stable performance.
  • Full Chinese Interface: Compatible with various software including AUTOCAD, CORELDRAW, PHOTOSHOP, CAXA, supporting marking of barcodes, QR codes, graphics, and text.
  • Multiple File Formats: Supports PLT, PCX, DXF, BMP file formats, with direct use of SHX and TTF fonts.

Technical Parameters:

  • Laser Type: UV laser wavelength: 355nm
  • Output Power: 5W/10W/15W
  • Maximum Linear Marking Speed: 10,000mm/s
  • Marking Range: 110mm × 110mm, maximum 650mm × 650mm
  • Character Height: 0.4-70mm

Working Environment Requirements:

  • Protection Level: ≥IP54
  • Cooling Method: Water cooling
  • Ambient Temperature: -5 to 45 degrees Celsius

355nm 10W UV Laser Marking Machine Water Cooling Barcode Laser Engraving Machine 2

System Technical Parameters

U100 series laser marking machine, presented in a table format
Laser Type Ultraviolet Laser Wavelength: 355 nm
Output Power 5W / 10W / 15W
Working Distance 220 mm (Standard 110 x 110 Field Lens)
Maximum Linear Marking Speed 10,000 mm/s (Determined by the type of galvanometer)
Marking Range 110 mm × 110 mm; Maximum Marking Range: 650 mm × 650 mm
Number of Marking Lines Any number of lines can be set within the effective marking range
Minimum Line Width 0.01 mm
Production Line Speed Up to 150 meters/minute (Determined by printing content)
Character Height 0.4 - 70 mm
Fonts Single-line fonts, Dot matrix fonts, TrueType fonts
Marking Content Text, Graphics, Barcodes, QR Codes, Dynamic Serial Numbers, Real-time Clock, TXT Files, RS232 Communication Data, etc.
Marking Angle Arbitrary angle, four-dimensional adjustable
Operating Interface
Display Industrial-grade Touch Screen
Operating Language Chinese, English (supports other languages)
Operating System Linux
Input Device Touchscreen Soft Keyboard Input



Working Environment Requirements

Environmental Requirements
Technical Parameter Specification
Protection Level ≥ IP54
Cooling Water Cooling
Ambient Temperature -5 to 45 degrees Celsius
Humidity Relative Humidity 80% RH, Non-condensing
Power Supply 220V, 1KVA

Advantages of Choosing the Syscode U110 Series UV Laser Engraving Machine:

U100 Series UV Laser Maintains High Productivity and Low Costs:

  • No consumables to replace during daily operations, ensuring longer production line uptime.
  • Air-cooled laser source maximizes laser availability, virtually eliminating unscheduled downtime.
  • No daily mechanical maintenance procedures help increase uptime.

High Speed, High Quality:

  • The 360° Arc Compensation Software feature ensures consistent high-quality marks on rotational devices, virtually eliminating distortion.
  • New intelligent control algorithm.
  • Enhanced anti-electromagnetic interference design ensures stable operation in harsh environments.

Easy to Install:

  • Compact design for better integration.
  • Compact size adapts to narrow installation spaces.

Permanent Identification:

  • Almost unlimited fonts, graphics, and barcode options.
  • Permanent identification ensures product traceability, anti-counterfeiting, and anti-channelization.

Low Maintenance, Non-Consumable:Innovative interactive interface that is easy to learn and understand.

  • One-button startup.
  • Non-consumable, cost-saving.

Our Services

1.Free Pre-Sales Consultation:

We offer a 12-hour rapid pre-sales response and free consultation. Any type of technical consultant service is available for users.

We provide enhanced solution design for all distributors and end users.

2.Services in Sales:

All machines will be thoroughly inspected and tested by our qualified QC staffs before shipment.

3.After-Sales Service:

Free video training!

Instructions are available!

Technicians provide support via Email, online video guide and remote control!

4.Customized Design,and OEM Orders are accepted:

Syscode team is more than happy to help you realize your unique ideas and requirements through our innovative capabilities. Therefore, when you need special features or customized machines and OEM machines, please do not hesitate to contact us.

Base to our high-quality products and excellent customer service, we have established stable and long-term partnerships with distributors in a global sales network, including in Southeast Asia,Middle East, Africa, and South America. Our products are now sold in over 100 countries worldwide.

If you are interested in any of our products or would like to place an order, please feel free to contact us.

We look forward to building successful business relationships with new customers from around the world in the near future.

We will offer competitive prices, high quality and timely Support!

You will find us to be the most suitable supplier you are looking for!

What is Laer Marking Systems?

What is Laser Marking?

In the simplest terms, laser marking is the marking method used to create a permanent code by applying an intense beam on the product. It covers various applications such as Fiber, Carbon, Uv.

The laser marking application can act in accordance with automation on high speed lines and can mark on a variety of materials including steel, titanium, aluminum, copper, ceramic, plastic, glass, wood and cardboard, providing traceability. A wide variety of codes such as serial numbers, expiry dates, part numbers, bar codes, unique ID codes, variable data, 2D Datamatrix codes can be printed on these products.

How Do Laser Marking Machines Work?

Laser marking machines work using an intense beam to mark the surface of the material. This beam reacts by burning the surface of the product. By targeting only a specific area, laser markers create high-quality, high-contrast codes that can be read and scanned on virtually any surface. This feature makes it the ideal solution for laser marking applications where reliability and durability are critical.



How to Use a Laser Marking Machine?

Since laser marking machines are of many different types, each of these machines work differently. The best process to use the machine depends on the material you will be working on and the application you are using. Our Syscode sional laser team will visit your production area and inspect you as soon as you contact us and inform you about the working principles of the laser marking machine by offering you the most accurate solution.



When using laser machines, all safety precautions and instructions must be followed. Laser marking has become a safe method, thanks to a variety of preventive measures, including security guard options.

What are the Benefits of Laser Marking?

  • Provides maximum efficiency with minimum downtime.
  • Eliminates costly problems such as forgery and poor quality codes.
  • To adapt to industry regulations
  • Lack of consumables and maintenance-free

What can be marked with Laser Marking?

How Do I Choose the Right Laser Marking Solution?

Laser marking technology has started to become more important by entering all production areas from automotive, aerospace and medical industries. The biggest reason for this is that manufacturers want to track and follow their products throughout their life cycle and the increasing demand.



One of the most common questions we receive at Syscode is “How do I choose the right marking technology for my application?” The truth is that marking technology is not one-mold technology, and there are a number of different factors that go into choosing the best solution for your application. So before investing heavily in marking equipment for your facility, be sure to consider three main aspects that will help you choose the right technology.



1-Materials

The first thing to consider is the type of material the marking will be applied to.

Organic materials such as wood, glass, plastic or paper, cardboard
-Materials such as metal, steel, aluminium

2- Code Type

After determining the material, it is necessary to consider what the code to be marked will be.

Depending on the type of marking technology, you can create a dark or frosted code. For example, a company that manufactures barcode technology wants its vision systems to read the barcode clearly. It’s all about your situation and how you want your product to look.

3- Security

Consider where the laser marking machine will be placed. Will it be near your operators or do you have a dedicated, closed area for it? Will this machine be a replacement for the inkjet coding machine?

If your laser marking machine will be located in an open area, you should know that the company from which you will buy the machine should help you establish a 1st class security system. This system includes a protected containment cabinet, warning lights.



When Should I Prefer Carbon (Co2) Laser Marking Machine?

In general, if you want to code product information on organic materials, you’re looking for a CO2 laser marking technology. Co2 laser marking machine is one of the best solutions when you are changing other marking technologies such as inkjet coding or dot peen laser.

Co2 lasers provide you with high code quality and are a convenient solution for date codes, serial numbers and all other product identification and tracking codes on wood, rubber, plastic, cardboard and product packaging.

When Should I Choose Fiber Laser Marking Machine?

If you want to mark non-organic products such as metal or plastic and want contrast in your coding, using fiber laser marking technology will be the best solution for you. Fiber laser marking machines should be in a closed enclosure and operated by taking standard safety precautions.

Fiber lasers offer a wide variety of features. It is a high quality marking application solution for engraving serial numbers, barcodes on a wide variety of materials including metals, plastics, ceramics.

How much does a laser machine cost?

Unfortunately, laser coding machines do not have an exact price. The price of Laser Coding Machines may vary depending on many variables. This can depend on your product to the amount of dust or humidity in the environment, to how many watts a machine needs. Contact us to find out what kind of laser printer you need

How do you start a laser marking machine?

If you are asking “How can we start laser coding as soon as possible”, your answer is clear, contact us immediately. But if you technically have a machine and you are asking how to start it, it means that you did not pay attention enough to the training that our technician give you when you bought the product. Although it is quite easy to start a laser coding machine, you can still contact our technical service for the clearest solution.

What is the difference between laser marking and laser engraving?

Although the two concepts seem close to each other, they are technically completely separate from each other. Laser marking works by discolouring the colour pigments on the coded product. Laser engraving, on the other hand, uses the coding method on the surface by using laser technology, making minimal engraving on the product.

Can you laser etch stainless steel?

Of course, we can. What made you think otherwise?

How does UV laser marking work?

U105 lasers operate in approvingly absorptive wavelength (355 nanometres) to mark components. This increased absorption rate lets UV lasers perform “cold marking,” confirming that no additional heat stress is applied to materials, including those with high reflectances such as copper, gold, and silver. This minimizes soot and burrs caused by typical marking and processing.

You can discover laser technologies that may be suitable for your production.
