S1700 Series Industrial Printer

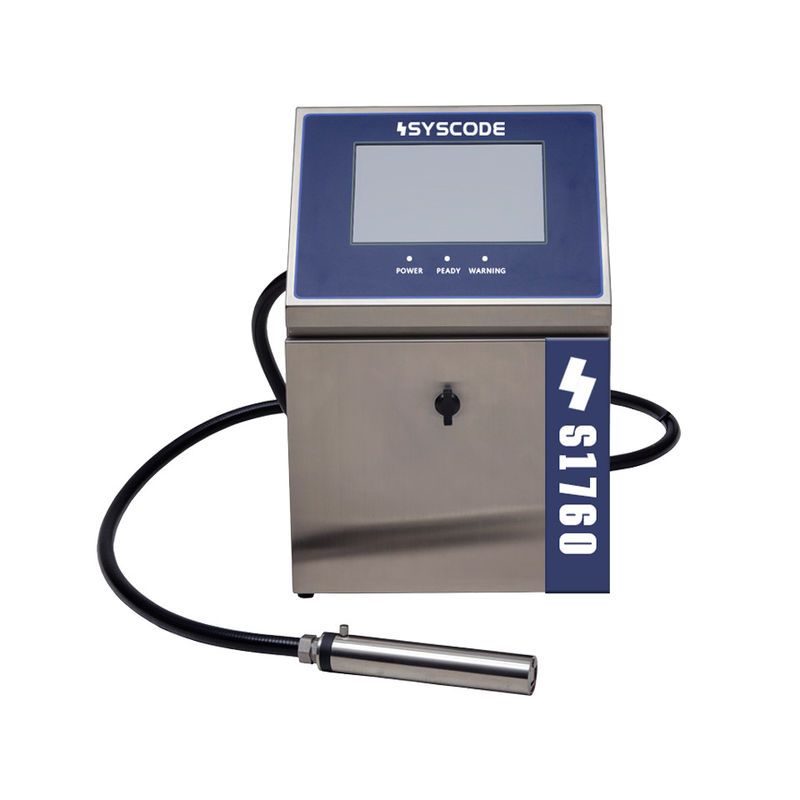

S1760 High-Speed Continuous Inkjet Printer for Industrial Applications
Industrial grade design concept All stainless steel body, IP54 level, Automatic cleaning ink systemand anti-blocking nozzle design, greatly improving the performance of switching on and off andmaintaining the stability of continuous high-speed printing, Integrated motherboard design toavoid circuit failures caused by aging connectors, Multilingual software, one-key switching.
Product Features
1.Automatic cleaning function upon startup.
2.Operates smoothly with the LINUX operating system.
3.Original imported diaphragm pump with overload protection.
4.Quick text, configuration, and logo backup functions.
5.Ink and solvent level detection system to ensure smooth machine operation.
6.Automatic maintenance reminders for daily upkeep.
7.10.1-inch color touchscreen with standard full keyboard input mode.
8.CE/ISO9001 certification.
Software Features
1. LINUX operating system for smooth operation.
2. Storage for over 2000 text entries.
3. One-click quick power on/off.
4. Self-diagnostic fault history records.
5. Automatic reminders for filter replacement.
6. Integrated graphics and font editor.
7. Multi-level user management for easy on-site device management.
8. Supports multiple common interfaces, including Chinese, English, and German.
9. Multi-counter support.
Ink System
Utilizes a diaphragm pump design, ensuring that the mechanical parts do not contact the ink for long-term stable operation.
Independent cleaning pipeline for automatic cleaning during startup and shutdown.
Solvent and ink level automatic alarm function to avoid frequent inspection work.
Ink Usage
Compatible with a full range of inks to meet the needs of various industries.
Technical Parameters
| Descriptions |
Parameters |
|
Descriptions |
Parameters |
| Nozzle Size |
70/60/50/40 microns |
Technical Parameters |
Head |
Diameter:41 mm Length:260 mm |
| Printing Capability |
Print Height |
1.2 ~ 15 mm |
| No. of Print Lines |
1 ~ 5 lines |
Hose |
Hose Length:3000mm Diameter:21 mm Bend Radius:150 mm |
| Maximum Dots |
32/48 dots |
| Distance to object |
2 ~ 15 mm |
Power Supply |
100-240 VAC, 50 Hz |
| Max. Printing Speed |
320 m/min |
Power |
120 W - 150 W |
| Input System |
Toucn Screen |
Net Weight |
25 KG |
| Fonts Types |
5×5, 7×5, 9×5, 11×9, 16×11, 24×16, 32×24 |
Temperatures |
5°C - 45°C 30% - 90% Relative Humidity |
| Ink/Solvent |
Ink Types |
Dye, Light Pigment |
Convenient Design |
Ink add method |
Manual, Automatic Addition Mode |
| Ink Colors |
Black, Red, etc. |
Communication Ports |
RS232 and USB Interface |
| Special Ink |
Anti-migration, Light Pigment, etc. |
Message Types |
2D Codes, Barcodes, Timers, Counters, etc. |
| Makeup |
Select according to ink type |
| Cleaner |
Select according to ink type |
Languages |
Chinese, En, Arabic, Russia,Spainish etc |
Our Services
1.Free Pre-Sales Consultation:
We offer a 12-hour rapid pre-sales response and free consultation. Any type of technical consultant service is available for users.
We provide enhanced solution design for all distributors and end users.
2.Services in Sales:
All machines will be thoroughly inspected and tested by our qualified QC staffs before shipment.
3.After-Sales Service:
Free video training!
Instructions are available!
Technicians provide support via Email, online video guide and remote control!
4.Customized Design,and OEM Orders are accepted:
Syscode team is more than happy to help you realize your unique ideas and requirements through our innovative capabilities. Therefore, when you need special features or customized machines and OEM machines, please do not hesitate to contact us.
Base to our high-quality products and excellent customer service, we have established stable and long-term partnerships with distributors in a global sales network, including in Southeast Asia,Middle East, Africa, and South America. Our products are now sold in over 100 countries worldwide.
If you are interested in any of our products or would like to place an order, please feel free to contact us.
We look forward to building successful business relationships with new customers from around the world in the near future.
We will offer competitive prices, high quality and timely Support!
You will find us to be the most suitable supplier you are looking for!
RFQ
1. What does CIJ stand for?
CIJ stands for Continuous Inkjet. The printer forms a stream of small ink droplets and selects some of them to print, resulting in characters that are deposited on the product. Unused droplets are recirculated back into the printer, eventually becoming part of the ink stream again.
2. What applications are recommended for CIJ?
CIJ printers can be used to print on materials such as paper, plastic, metal, and glass. Typical applications include milk containers, soda cans, pharmaceuticals, small cardboard boxes, cable, and small part marking.
3. What is the difference between CIJ and contact coding machines?
CIJ printers is non-contact the object to coding message. The ink drops by pressure to fly to the object, and form the message according to the programming in the printer as the moving product passes by. The distance between the printer head and the product is typically within 1~12mm.
4. Which ink should I use for my specific application?
Our application technician will support you to select the right ink that meets your and your customers' specific application needs base on your actual products.
5. What colors of ink do you offer?
Depending on the clients products, our color range includes black and high-contrast white, yellow, blue, and red. Etc.
6. Can I order samples?
Yes, you can. You are welcome to purchase small quantities first to test and check the quality before placing a large order.
7. What is the lead time for an order?
The lead time for all Syscode products is 1-2 weeks after order confirmation. For stock items, they can usually be shipped within 2 business days, but this also depends on the order quantity.
8. What is the warranty period for Syscode products?
It is usually 12 months since dispatch.
9. How do you ship goods?
We can ship goods by sea, air, or courier.
10. Can you print our logo on the outer package?
Yes, we can. But this only applies to large orders; for small orders, we just print it on paper and stick it on the package.
11. Can we visit your company and factory?
Yes, you are welcome. If you need airport transportation to our factry, and hotel booking, please let us know after deciding your itinerary.
12. What are your payment terms?
Usually, we suggest you pay the payment by wire transfer. For order values less than 10,000 USD, please pay 100% via wire transfer in advance;
For larger orders, 70% deposit in advance, and 30% via wire transfer before dispatch.
13. How is your after-sales service?
For the market with local distributors, we rely on our distributors to provide after-sales service on site. We also provides online technical service in addition to continuously upgraded video support.
14. Can you customize your products to meet my needs?
Yes, but it requires us to take a certain amount of time to communicate and discuss the volume.
15. Can you send us loose parts if I want to assemble them in my local market with my own team, is this possible?
Yes, we provide to the potential partner to bring down their landing cost base on their skillful technical team status, and follow our standard procedure to process this unique operation, the order with MOQ requirement.
