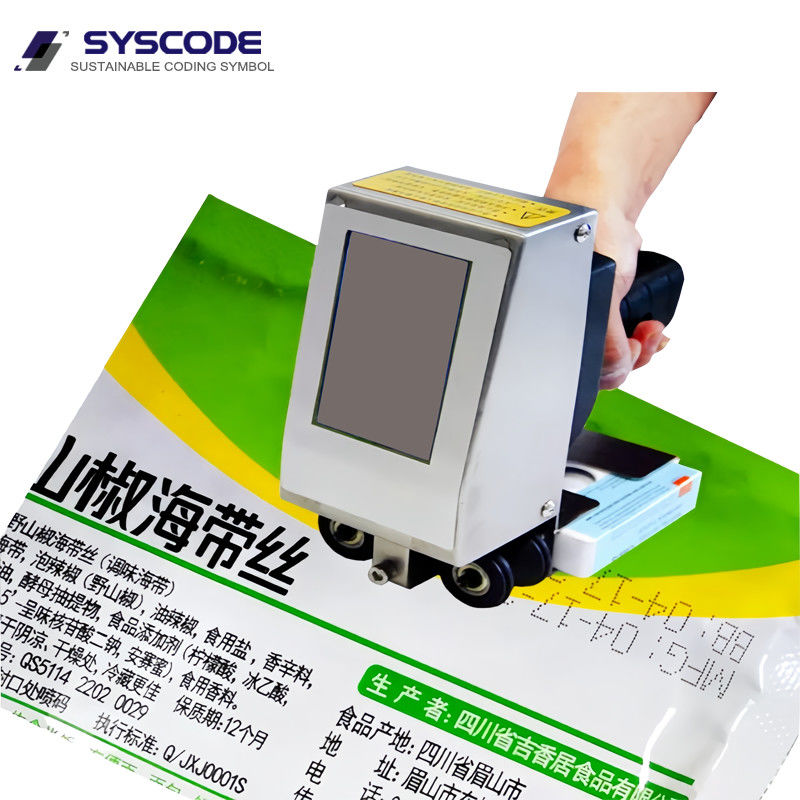

Manual Inkjet Coding Machine for Packaging: Logo and Date Printing for Bags and Boxes
Manual Batch Inkjet Coding Machine
Product Overview
Our manual batch inkjet coding machine is specifically designed for printing on packaging bags, boxes, labels, and dates. This device utilizes continuous inkjet technology to provide high-resolution printing solutions, suitable for various industries including consumer goods, chemical products, food, and cardboard boxes.
Product Features:
- Printing Height: Supports 1-18 mm to meet different printing requirements.
- Ink Type: Uses fast-drying and oil-based inks to ensure print quality and durability.
- Ink Colors: Available in multiple color options, including black, white, red, green, yellow, and blue.
- Battery Life: New battery offers approximately 8 hours of standby time and about 7 hours of continuous printing for efficient operation.
Industry Applications:
- Consumer Goods
- Chemical Products
- Food Packaging
- Box Printing
Why Choose Us?
This machine features ease of operation and high efficiency, capable of meeting various industry needs for labeling and date printing. It is your ideal coding solution.
Basic Info.
| Model |
Syscode K530 |
| Usage |
Food, Chemical Products, Pharmaceuticals |
| Classification |
Continuous Inkjet Printer |
| Working Mode |
Portable Inkjet Printer |
| Packaging |
Box packaged |
| Color |
Black, White, Red, Yellow, Green, Blue |
| Display |
Touch Screen |
| Transport Packaging |
Carton |
| Trademark |
Syscode |
| HS Code |
8443391000 |
| Type |
Continuous Jet Coding Machine |
| Automatic Grade |
Manual |
| Application |
Inkjet |
| Print Width |
18mm |
| Print Content |
Logo, Number, Letter |
| Ink Type |
Quick-Drying Ink |
| Specification |
323240cm |
| Origin |
Shanghai |
| Production Capacity |
800 units/hour |
Product Details:
-
Ink System
- Totally sealed ink system
- Special filter for long-term operation
-
Roller & Band
- Special "V" design to adapt to flat and uneven surfaces
- Corrosion-resistant materials ensure durability
-
Controller
- 3.5-inch color touch panel, WYSIWYG
- Equipped with RS232 and USB interfaces for easy connectivity
- Compact design for greater flexibility, suitable for various working environments
-
Printhead
- Piezo high-resolution printhead
- Maximum font size of 18mm
- Resolution up to 300 dpi to ensure print quality
-
Suitcase Package
- Special suitcase packaging to protect the printer from damage during shipping.
Application:
Product Parameters:
Print Height:1-18 mm
Print Spacing:8 mm-10 mm, depending on the printed content and ink type
Print Lines:Unlimited lines within the maximum height of 18 mm
Print Length:Maximum length of 20,000 dots per file (maximum height of 2.54 meters at 200 DPI resolution)
Print Speed:60 meters/minute (horizontal resolution 100 DPI)
Print Resolution:Vertical resolution of 200 DPI; horizontal resolution adjustable between 100-400 DPI
Print Fonts:Built-in multiple fonts, with options for horizontal, vertical, dot-matrix, and bold fonts
Print Content:Can print real date, real time, photos, letters, shift groups, serial numbers, batch numbers, barcodes, and QR codes
Print Direction:Upward, downward, and side printing (360° direction printing)
Font Library:Standard font library includes Chinese and English, with optional Spanish, Portuguese, and Arabic font libraries
Operator Interface:Image-based and menu available in Chinese or English (Spanish, Portuguese, Arabic), WYSIWYG
Memory Function:Can store over 1,000 text entries
Display:7-inch color touchscreen
Ink Type:Ink sourced from the UK. Includes solvent ink (requires regular maintenance); invisible ink (requires regular maintenance); oil-based ink (maintenance-free)
Applicable Surfaces:Can print on plastic, glass, metal, paper, wood, etc.
Ink Colors:Black, red, yellow, blue, green, white, etc.
Each Ink Cartridge:Each cartridge can print 850 million dots during efficient production:
* Each cartridge can print 400,000 two-line dot-matrix font caps or medicine boxes, font size 1*1.7 cm², cost per product is 0.001 yuan
* Each cartridge can print 20,000 large dot-matrix fonts on big cartons, font size 3.5*20 cm², cost per carton is 0.02 yuan
* Each cartridge can print 10,000 bold fonts on big cartons, font size 3.5*20 cm², cost per carton is 0.04 yuan
Machine Weight:1.75 kg
Machine Dimensions:230 x 135 x 183 mm
Rechargeable Battery:New battery lasts about 8 hours on standby; approximately 7 hours of printing time
Power Supply:Charger input AC 100V-260V, 50-60Hz, output DC 12.6V
Humidity Range:10-90% non-condensing
Temperature Range:5-40ºC
External Interfaces:USB interface, synchronizer
Others:No need to connect to external compressed air or use diluents (i.e., solvents)
Frequently Asked Questions
Our latest designed handheld marking system features a 7-inch color touchscreen and supports solid character printing up to 18mm in height. This user-friendly device requires no connection to a PC, allowing users to input information directly via the touchscreen. Its compact design makes it ideal for various industrial applications.
Q1: Can I apply for one unit as a sample order?
A: Yes, we welcome sample orders for testing and quality inspection. You can also choose to mix multiple sample units.
Q2: What is the delivery time?
A: Sample preparation usually takes 3-5 days, while large-scale production generally requires 8-10 working days.
Q3: What is the minimum order quantity for the handheld marking machine?
A: Our minimum order quantity is very low; you can apply for 1 unit for sample inspection.
Q4: How do you ship, and how long will it take?
A: We ship via DHL, UPS, FedEx, or TNT, typically taking 3-5 days for delivery. We also offer air and sea transport options to meet different needs.
Q5: How do I place an order for the handheld marking machine?
A:1,Please inform us of your needs or applications.
2,We will provide a quote based on your requirements or suggestions.
3,The customer confirms the sample and pays a deposit to officially place the order.
4,We will arrange production.
Q6: Can I print my logo on the handheld marking machine?
A: Yes, please inform us officially before production, and we will customize it for you.
Q7: Do you provide a product warranty?
A: Yes, we offer a 1-year product warranty to ensure your peace of mind during use.
Q8: How do you handle defective products?
A:1,Our products are manufactured under a strict quality control system, with a defect rate of less than 0.1%.
2,During the warranty period, we will provide replacements for small batches of defective handheld marking machines. For larger batches of defective products, we will repair, return them, or discuss solutions based on the actual situation, including recalls.
Q9: Do you provide technical support?
A: Yes, we offer comprehensive technical support, including phone, email, and online chat, to ensure you receive assistance during use.
Q10: What payment methods do you accept?
A: We accept various payment methods, including L/C, bank transfer, and PayPal, to facilitate your transactions.
